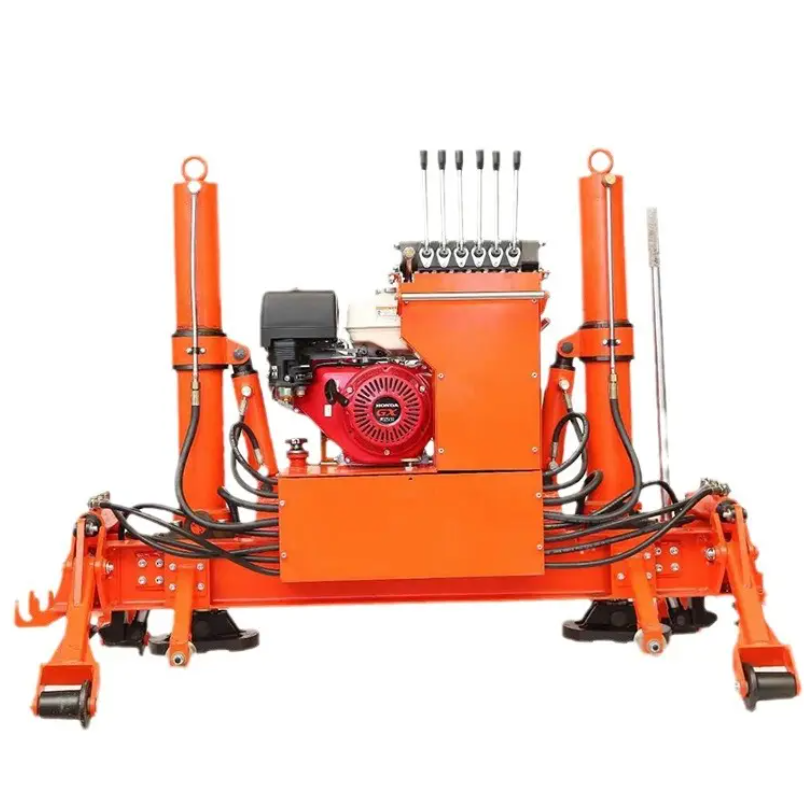

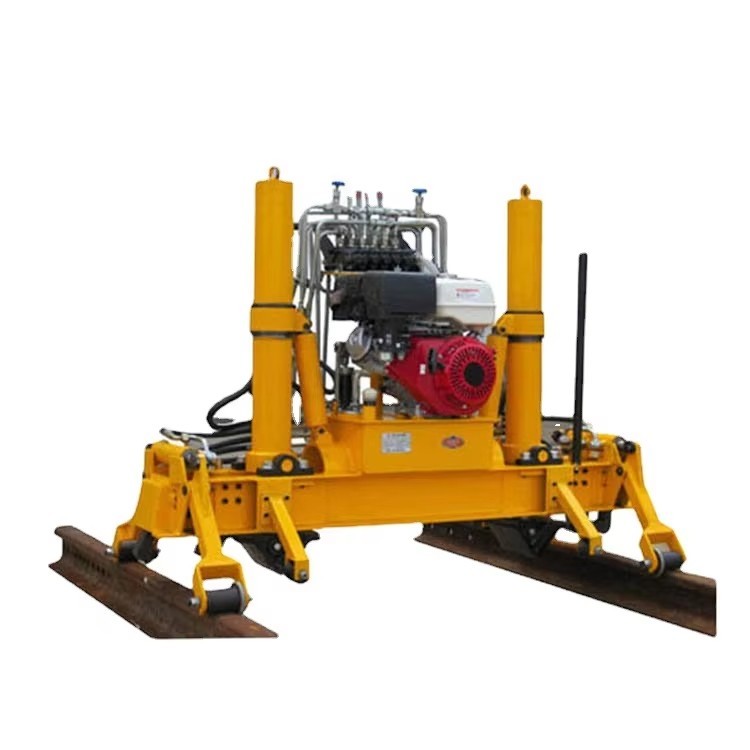

YQBJ-300*200 hydraulic railway track leveling trolley slewing machine rail ballast bed lifting

YQBJ-300*200 hydraulic railway track leveling trolley slewing machine rail ballast bed lifting

Hydraulic Rail Lifting and lining machine structure is reasonable.While hydraulic system falls down.Manual pump can be used to
operate or moved the machine off-track to ensure safe operation.

Manufacturing Data

NAME: YQBJ-300*200 hydraulic railway track leveling trolley slewing machine rail ballast bed lifting

Max.lifting force:100KN-200KN

The lifting cylinder stroke: 500MM

System Working Pressure: 13Mpa

Manual Pump Operating Force: 350N

Motor Engine Power: 4.8KW

Cylinder Stroke:14

Design Type: Double Acting

Max Operating Pressure: 3000

Rod Pin Size: 1.25
