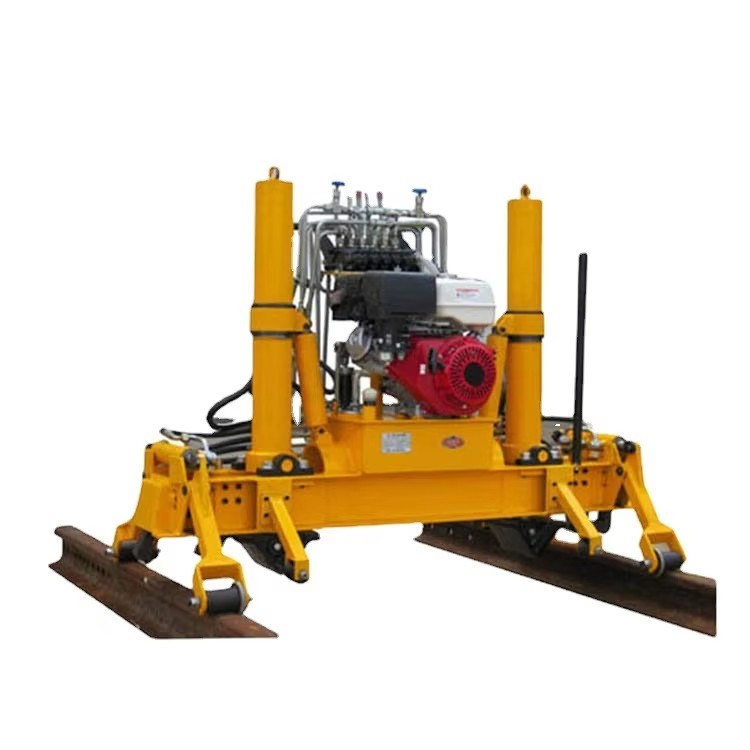

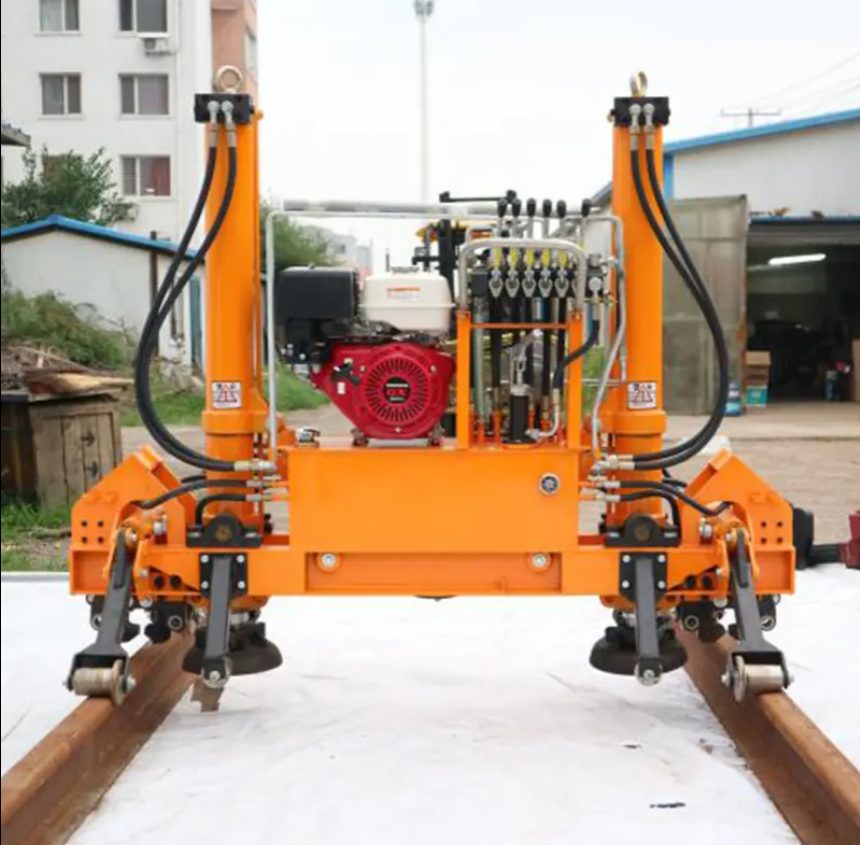

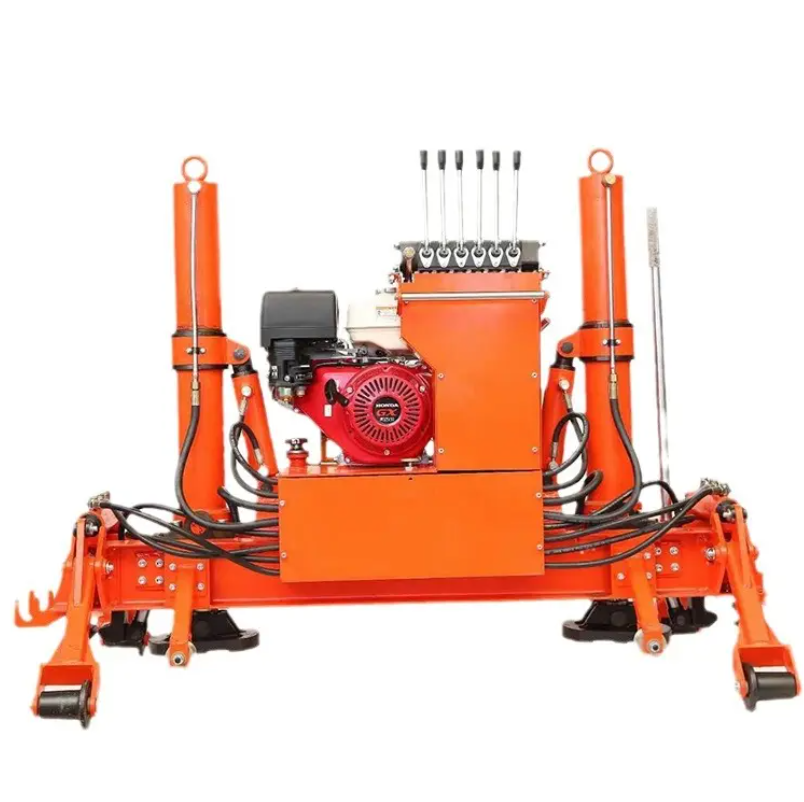

Rail Vehicle Locomotive 15 Tons Lifting Jack Steel Track Jack
Hydraulic Rail Lifting and lining machine structure is reasonable.While hydraulic system falls down.Manual pump can be used to
operate or moved the machine off-track to ensure safe operation.
Manufacturing Data
NAME: Rail Vehicle Locomotive 15 Tons Lifting Jack Steel Track Jack
Max.lifting force:100KN-200KN
The lifting cylinder stroke: 500MM
System Working Pressure: 13Mpa
Manual Pump Operating Force: 350N
Motor Engine Power: 4.8KW
Cylinder Stroke:14
Design Type: Double Acting
Max Operating Pressure: 3000
Rod Pin Size: 1.25
